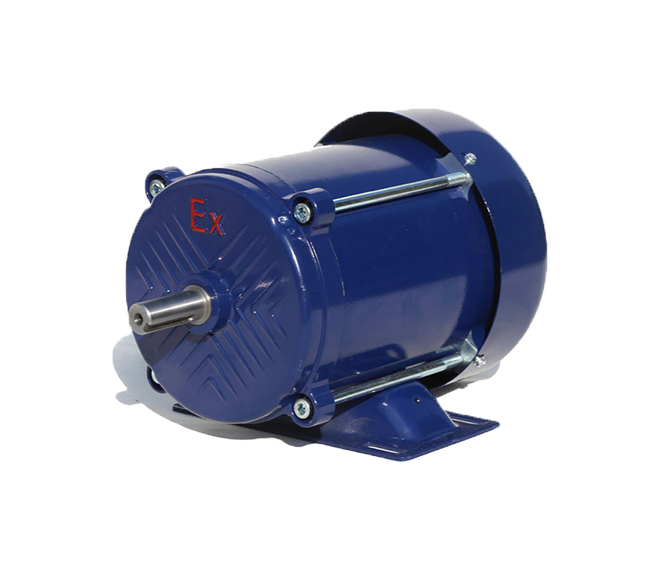

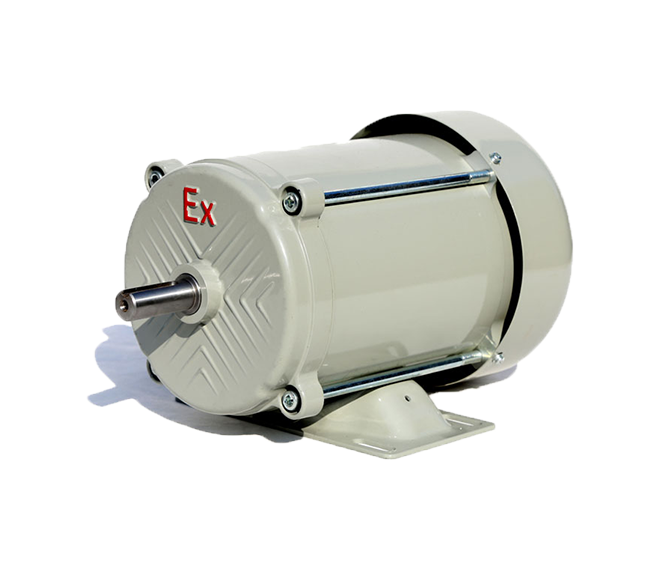

Home > Products > Flameproof three-phase asynchronous motor > YBJYN100 three-phase asynchronous motor
Email：[email protected]
|
model |
Power (KW) |

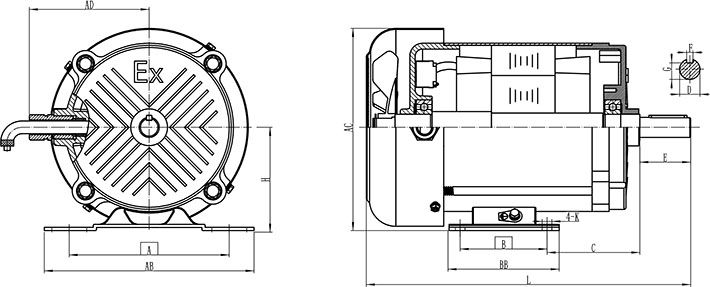

Installation dimensions and tolerances（mm) |
overall dimensions（mm） |
|||||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
K |
AB |
AC |
AD |
L |
||
|
YBJYN100S1-2 |
0.75 |
151 |
82 |
87±1.5
|
19+0.009 19-0.004
|
48±0.31
|
6-0.03
|
15.5-0.10
|
98-0.5
|
9+0.36
|
198 |
191 |
113 |
349 |
|
YBJYN100S2-2 |
1.1 |
|||||||||||||
|
YBJYN100M1-2 |
1.5 |
369 |
||||||||||||
|
YBJYN100S1-4 |
0.75 |
349 |
||||||||||||
|
YBJYN100S2-4 |
1.1 |
|||||||||||||
|
YBJYN100M1-4 |
1.5 |
369 |
||||||||||||
|
YBJYN100S2-6 |
0.75 |
349 |
||||||||||||
|
YBJYN100S3-6 |
1.1 |
|||||||||||||
|
YBJYN100M2-6 |
1.5 |
369 |
||||||||||||
|
model |
Power（W） |
Voltage(V) |
electric current (A) |
Frequency(Hz) |
Rotating speed r/min |
Efficiency η(%) |
power factor cosΦ |
Rated torque N.m |
Rated torque （times） |
rated current （times） |
Rated torque （times） |
Noise dB（A） |
|
YBJYN80M1-6 |
370 |
380 |
1.4 |
50 |
960 |
63 |
0.7 |
3.7 |
1.9 |
4.0 |
2.1 |
54 |
|
YBJYN80M2-6 |
550 |
380 |
1.8 |
50 |
960 |
66 |
0.72 |
5.5 |
1.9 |
4.0 |
2.1 |
54 |
|
YBJYN80M-6 |
750 |
380 |
2.3 |
50 |
960 |
69 |
0.72 |
7.5 |
2.1 |
4.0 |
2.1 |
57 |
