YBD dual value capacitor single-phase asynchronous motor

model

Power

(KW)

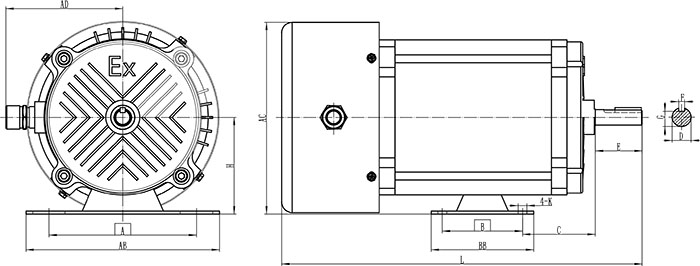

Installation dimensions and tolerances（mm)

overall dimensions（mm）

A

B

C

D

E

F

G

H

K

AB

AC

AD

L

YBL100L4-2

0.56

151

82

87±1.5

16+0.009

16-0.004

48±0.31

5-0.03

13-0.10

98-0.5

9+0.36

198

197

113

349

YBL100L1-2

0.75

YBL100L2-2

1.0

YBL100H1-2

1.5

369

YBL100L1-4

0.56

151

82

198

197

113

349

YBL100L2-4

0.75

YBL100L3-4

1.0

YBL100H1-4

1.5

369
