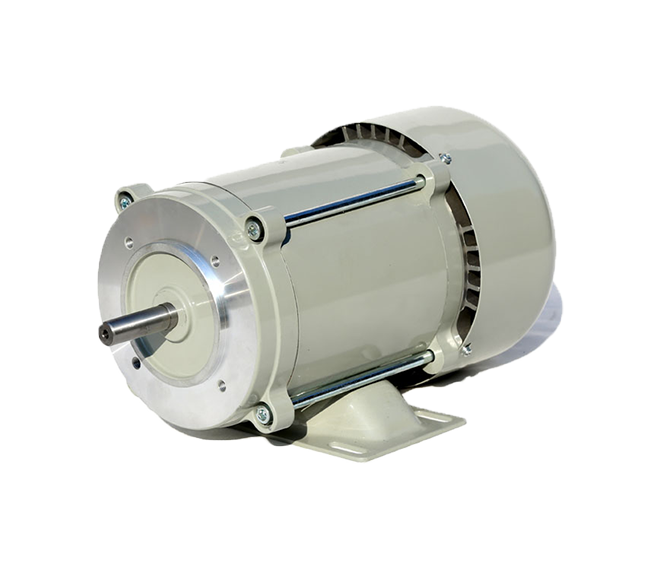

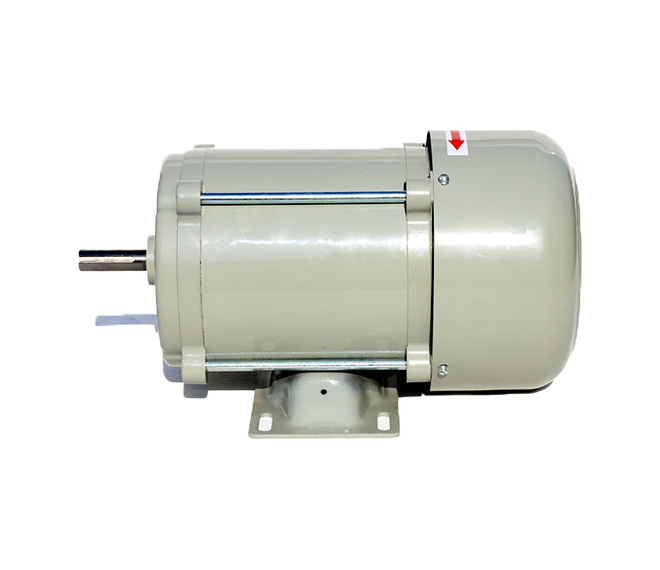

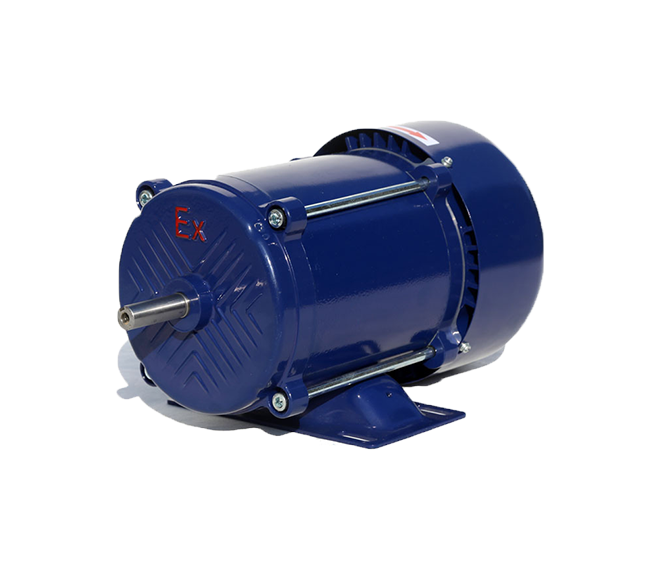

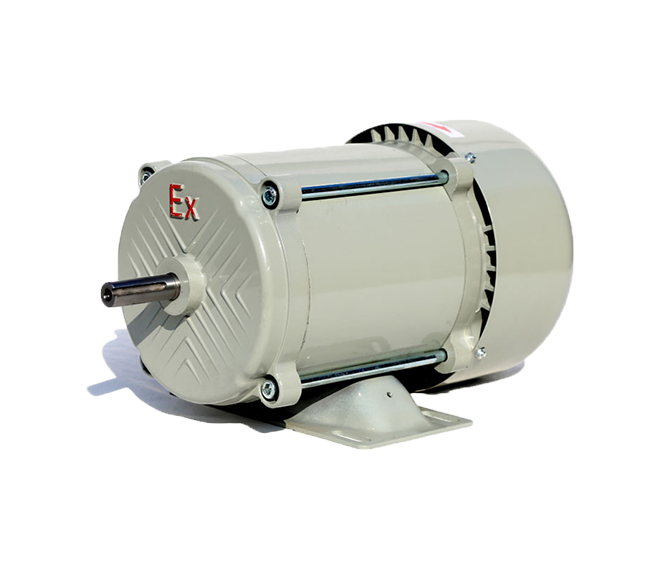

Home > Products > Flameproof dual value capacitor single-phase asynchronous motor > YBL dual value capacitor single-phase asynchronous motor
Email：[email protected]
|
model |
Power (KW) |
Installation dimensions and tolerances（mm) |
overall dimensions（mm） |
|||||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
K |
AB |
AC |
AD |
L |
||
|
YBL100L4-2 |
0.56 |
151 |
82 |
87±1.5
|
16+0.009 16-0.004
|
48±0.31
|
5-0.03
|
13-0.10
|
98-0.5
|
9+0.36
|
198 |
197 |
113 |
349 |
|
YBL100L1-2 |
0.75 |
|||||||||||||
|
YBL100L2-2 |
1.0 |
|||||||||||||
|
YBL100H1-2 |
1.5 |
369 |
||||||||||||
|
YBL100L1-4 |
0.56 |
151 |
82 |
198 |
197 |
113 |
349 |
|||||||
|
YBL100L2-4 |
0.75 |
|||||||||||||
|
YBL100L3-4 |
1.0 |
|||||||||||||
|
YBL100H1-4 |
1.5 |
369 |
||||||||||||
|
model |
Power（W） |
Voltage (V) |
electric current (A) |
Frequency(Hz) |
Rotating speed r/min |
Efficiency η(%) |
power factor cosΦ |
Rated torque N.m |
Rated torque （times） |
rated current （times） |
Rated torque （times） |
Noise dB（A） |
|
YBL100L1-2 |
750 |
220 |
5.0 |
50 |
2800 |
70 |
0.80 |
2.56 |
2.5 |
37 |
75 |
|
|
YBL100L2-2 |
1000 |
220 |
7.0 |
50 |
2800 |
72 |
0.80 |
3.41 |
2.5 |
60 |
78 |
|
|
YBL100L2-4 |
750 |
220 |
5.0 |
50 |
1440 |
68 |
0.73 |
4.97 |
2.5 |
37 |
70 |
|
|
YBL100L3-4 |
1000 |
220 |
7.0 |
50 |
1440 |
71 |
0.74 |
6.63 |
2.5 |
60 |
73 |
|
